Custom Models



D-Lab's New PTT Modules

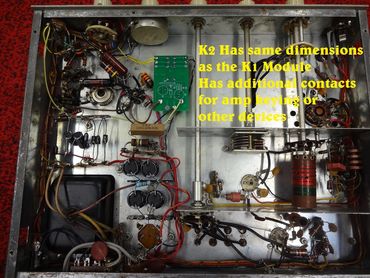

Thank you all for being part of the D-Lab Team. Below are pictures of the D-Lab custom PTT modules for Ham Transmitters. The model K1. I offer these for many models: Johnson: Ranger1 and 2, Valiant, Viking 1 and II, Challenger, NAVIGATOR.  Heathkit: Apache TX-1, DX-100, DX-60, DX-35, DX-40. Eico 720.  Many others, Custom boards can be configured for your application, e-mail me for details (n6tlu@comcast.net).  Over 200 boards have sold, with no returns or issues that could not be resolved. I sell the Type 1 without the octal socket for $50.00. With Octal socket, built in diodes to replace the Rangers 6AX5 rectifier tubes runs $75.00. Announcement! The K2 boards are ready! They feature auxiliary contacts for more switching such as dial Xmit lamp and screen circuits. You can buy the module without base for $60, with base $85.00. Fresh dual sided circuit boards. See pictures above. A video is in the works. I love doing these projects and helping out my fellow Hams + Guitar hobbyist. If you would like to help me to keep the effort going, please click Donate button on the Main page "Throw me a bone"

Contact Info:

Terry Dayton

8110 Swift Rd.

Battle Creek, MI 49017

Direct e-mail: n6tlu@comcast.net

Or, message me thru Reverb.com

Phone: 269-962-8765

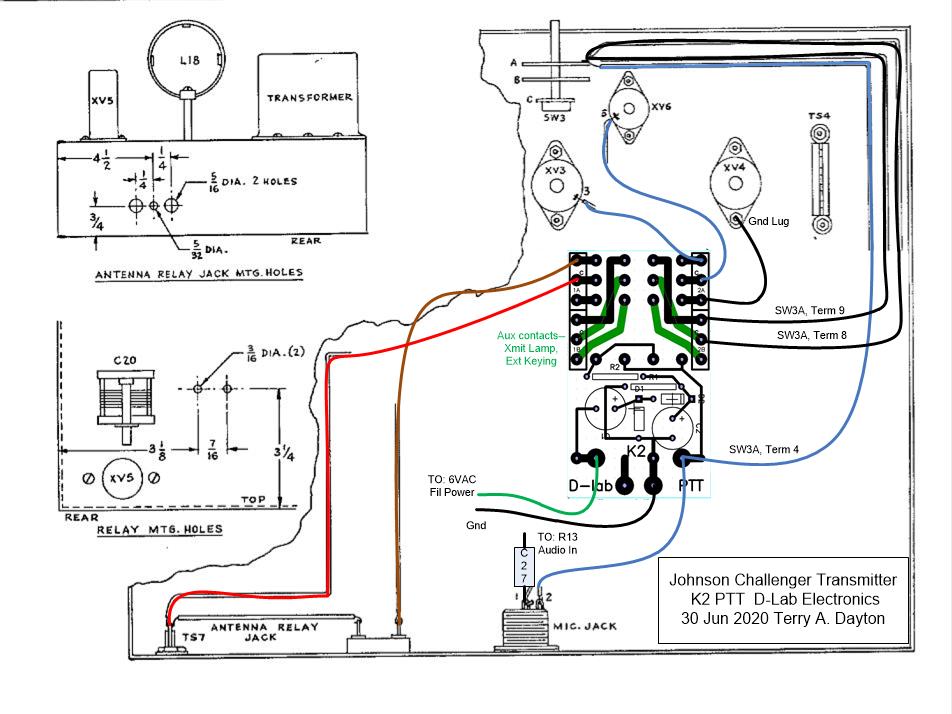

Challenger_PTT (jpg)

Download

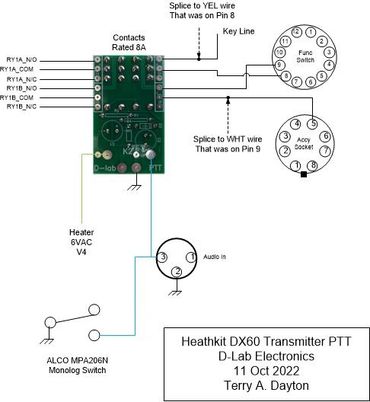

DX60PTT_Mono (jpg)

Download

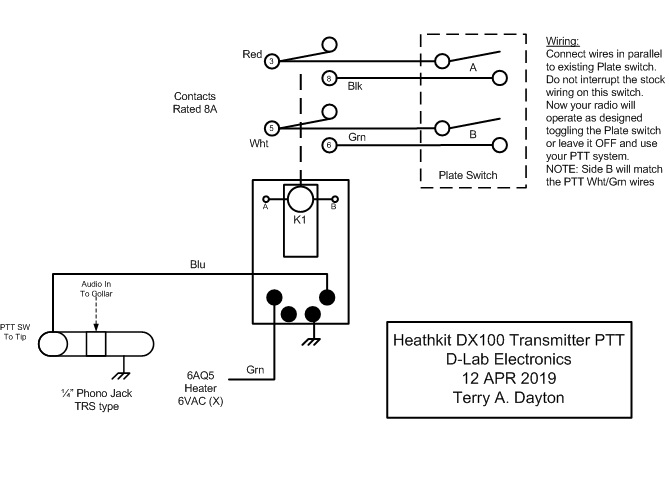

DX100_PTT (jpg)

Download

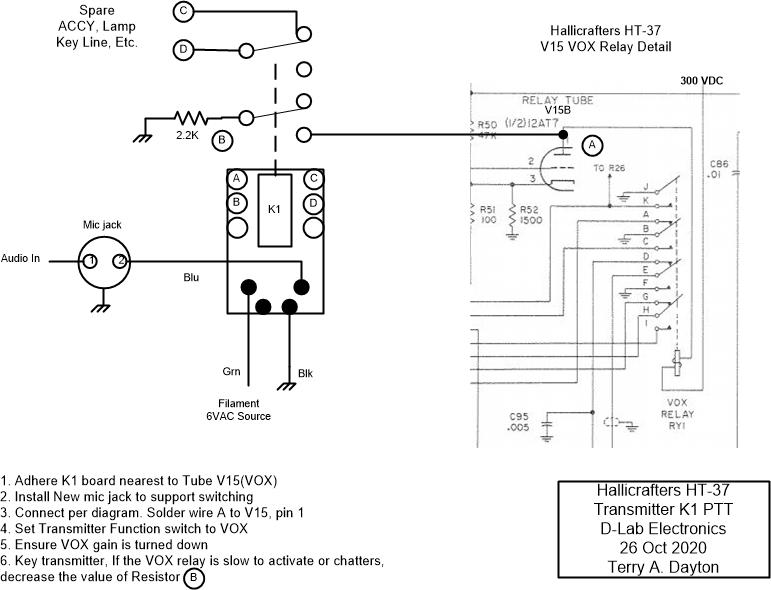

HT37_PTT (jpg)

Download

JRPTT_K1 (jpg)

Download

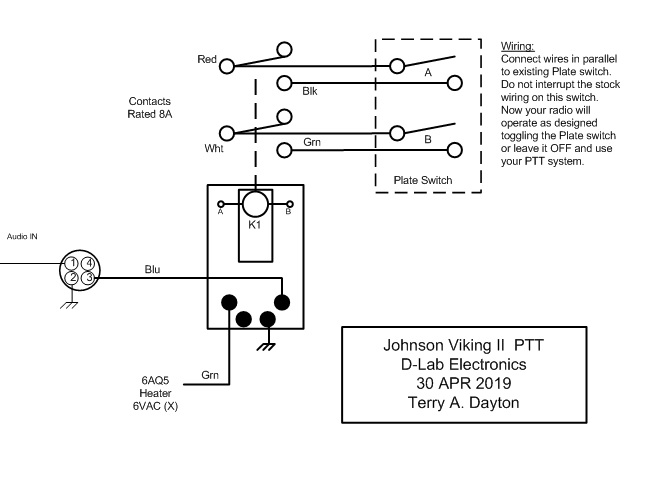

JVKII_PTT (jpg)

Download

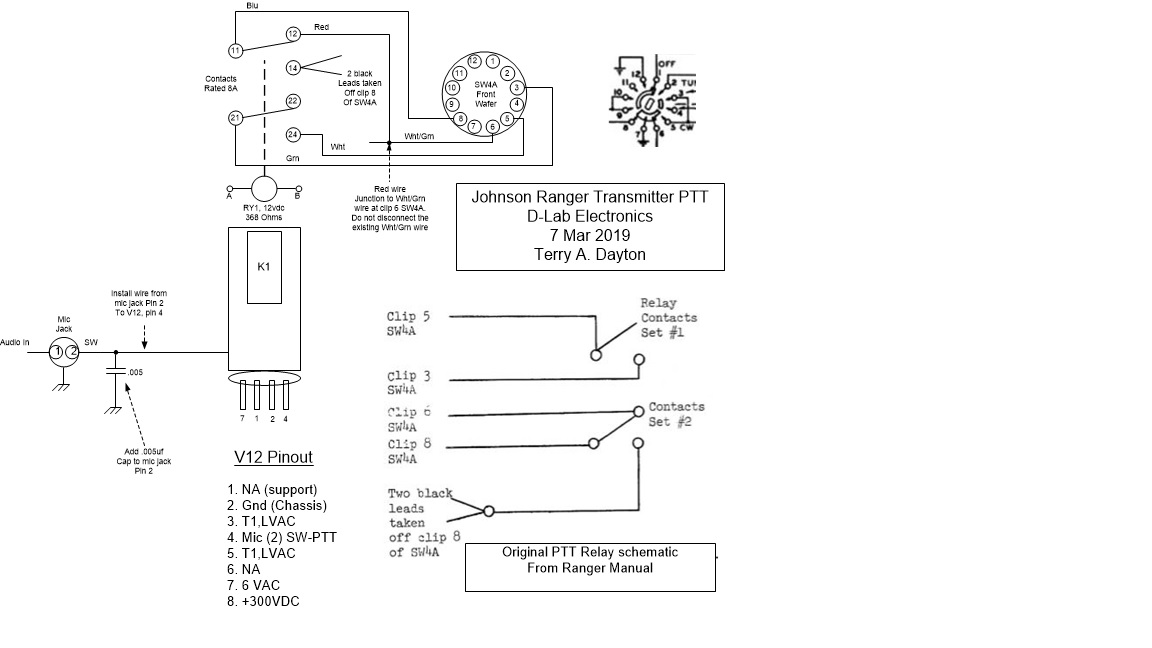

K1PTT (jpg)

Download

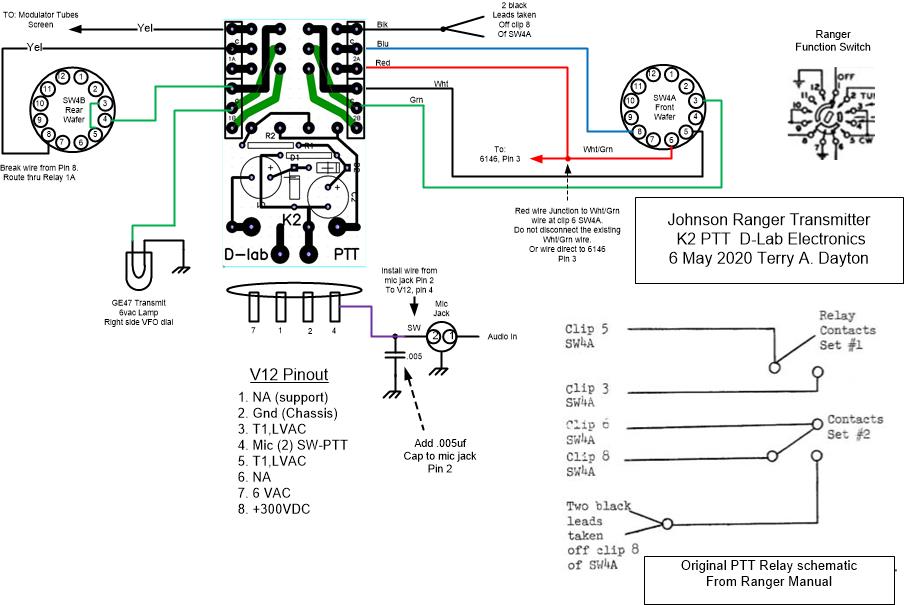

K2PTT (jpg)

Download

RangerK1PCB (jpg)

Download

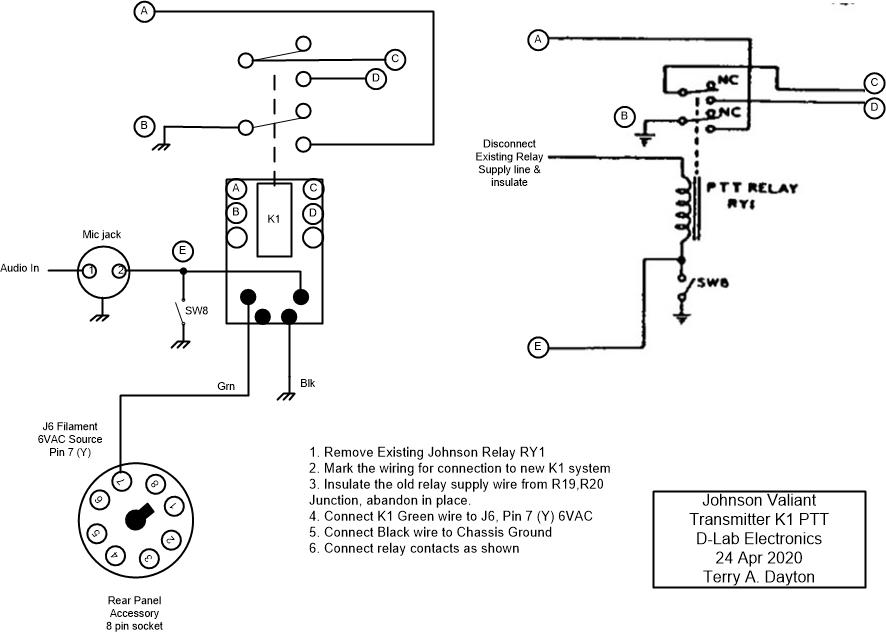

Valiant_PTT (jpg)

Download

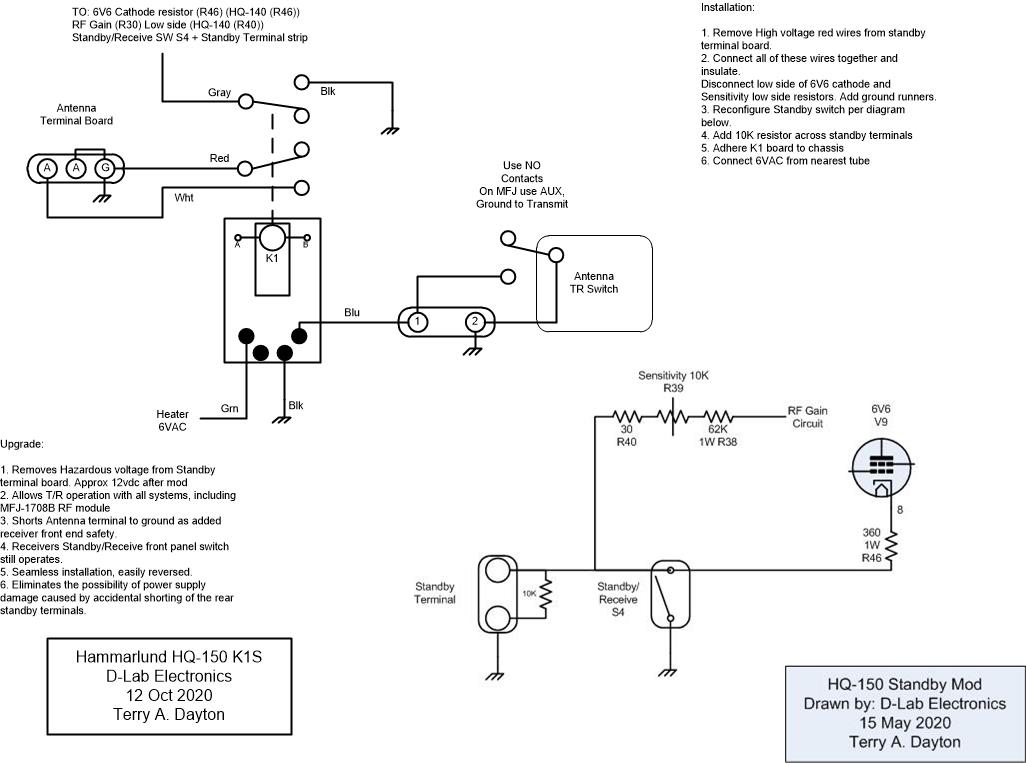

HQ150_K1S (jpg)

Download

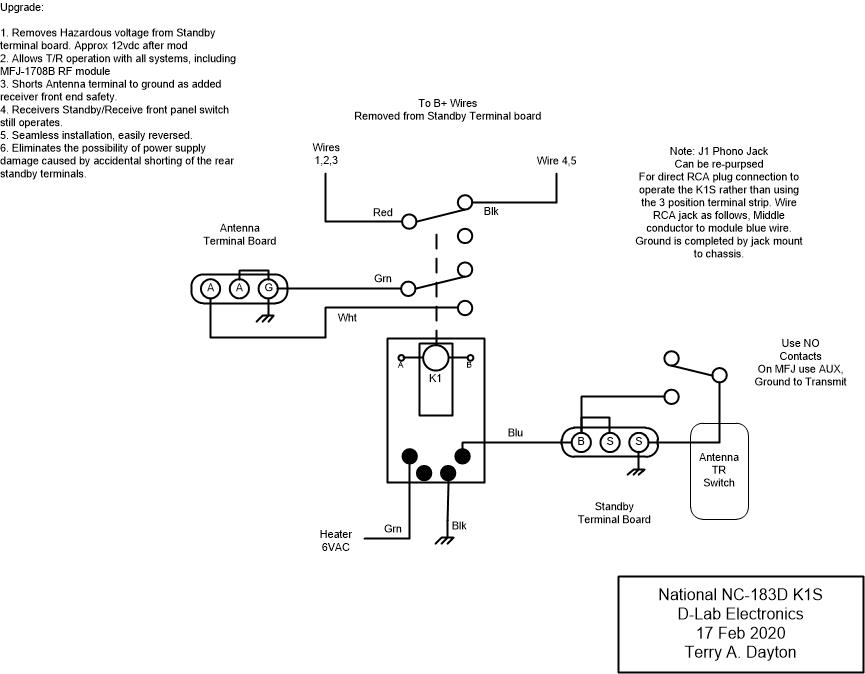

NC183D_SSR (jpg)

Download

PTT Modules

    D-Lab heathkit DX-60 K2 Module More switching! Simple Install $65.00
